SJ ADVANCED SERIES
The equipment is suitable for the processing of precision workpiece and precision die.
Advanced Type CNC EDM Wire Cutting Machine has the characteristics of stable cutting and good cutting smoothness.
The equipment is suitable for the processing of precision workpiece and precision die.
Electrical Parameters:
| Description | Unit | Specification |
| Max.Cutting Speed | mm²/min | 200 |
| Wire Electrode Diameter | mm | φ0.1~φ0.25 |
| Machining Precision(cutting octagon) | mm | ≤0.01 |
| Taper/Workpiece Height | *3°/100mm | |
| Power Consumption | kw | 3 |
| Surface roughness | μm | single cut Ra＜2.0 **Multiple cut Ra＜0.8 |
| High pressure water tank | Multi-stage filter system | |
| Control method of wire spool, cooling system | Controlled by the program and the NC panel | |
| Repeating position precision of X,Y-axis | μm | ±1 |
| Guide rail type | Linear guide rail | |
| Speed regulation of transport wire tube | Converter | |
| Number of control axes | 5 | |
| Power Supply | AC380 50Hz |
*The spinneret should be new and the processing time should not be too long.
**The material of workpiece is Cr12 and the height is less than 100mm.
Equipment Specification:
| Description | Unit | Specification | Specification | Specification |
| Modle | A320 | A400 | A500 | |
| Worktable Size (LxW) | mm | 550x700 | 570x800 | 680x900 |
| Worktable Travel (LxW) | mm | 320x400 | 400x500 | 500x630 |
| Max.Workpiece Height | mm | 250 | 250 | 300 |
| Max.Workpiece Weight | kg | 350 | 400 | 500 |
| Machine Dimensions(LxWxH) | mm | 1750x1250x2050 | 1850x1420x2100 | 2050x1600x2150 |
| Machine Weight | kg | 1600 | 1900 | 2200 |

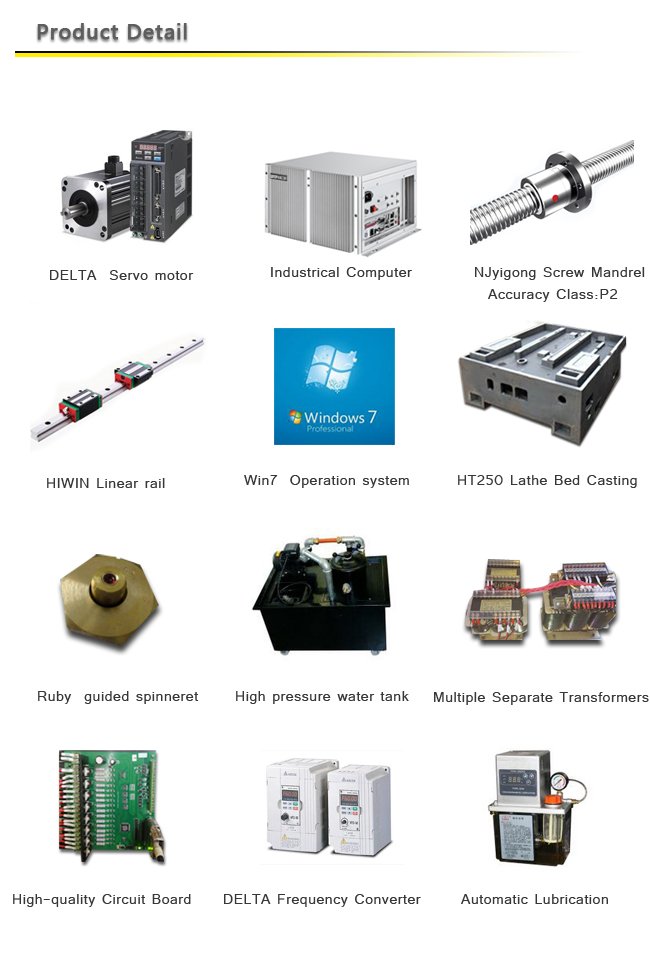

Standard Accessories:
X/Y-axis servo motor
Automatic tightening system
Z-axis lift electric drive
Linear guide rail(HIWIN)
High pressure tank
Integrated electric lubrication system of guide rail and lead screw
Converter
Win7 operating system
Integrated control cabinet
Ruby spinneret
Industrial computer IPC
Separating transformer system
A set of tools and accessories
One-year warranty
Optional Accessories:
X/Y-axis stepping motor
Regulated power supply
Diamond spinneret
The color of machine is optional (The color of control cabinet is nonoptional)..
Two-year warranty
※ The above configuration and parameters are subject to change without prior notice.
